Adjust Pro Hub
轻松控制风扇与RGB 组件，无需背景程序运行，尽在Adjust Pro Hub。只需连接兼容装置并访问Adjust Pro 网站，即可调整风扇转速，并透过进阶主题与特效设置灯效。
Adjust Pro Hub
Connect to Adjust Pro
享受Adjust Pro
将风扇与各类RGB 装置连接至Adjust Pro，透过直觉式网页界面，轻松完成各项设置与调整。
Adjust Pro

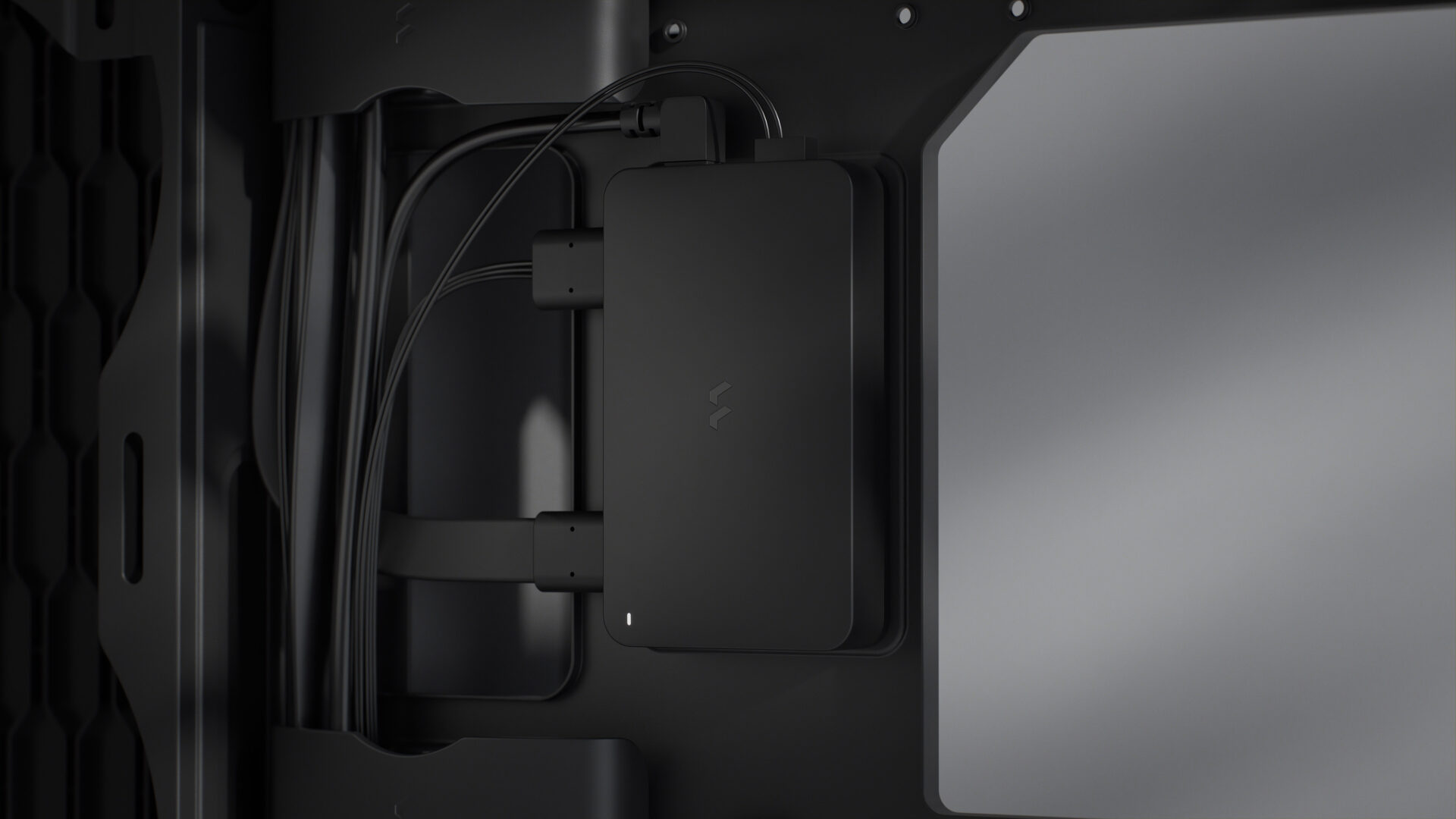

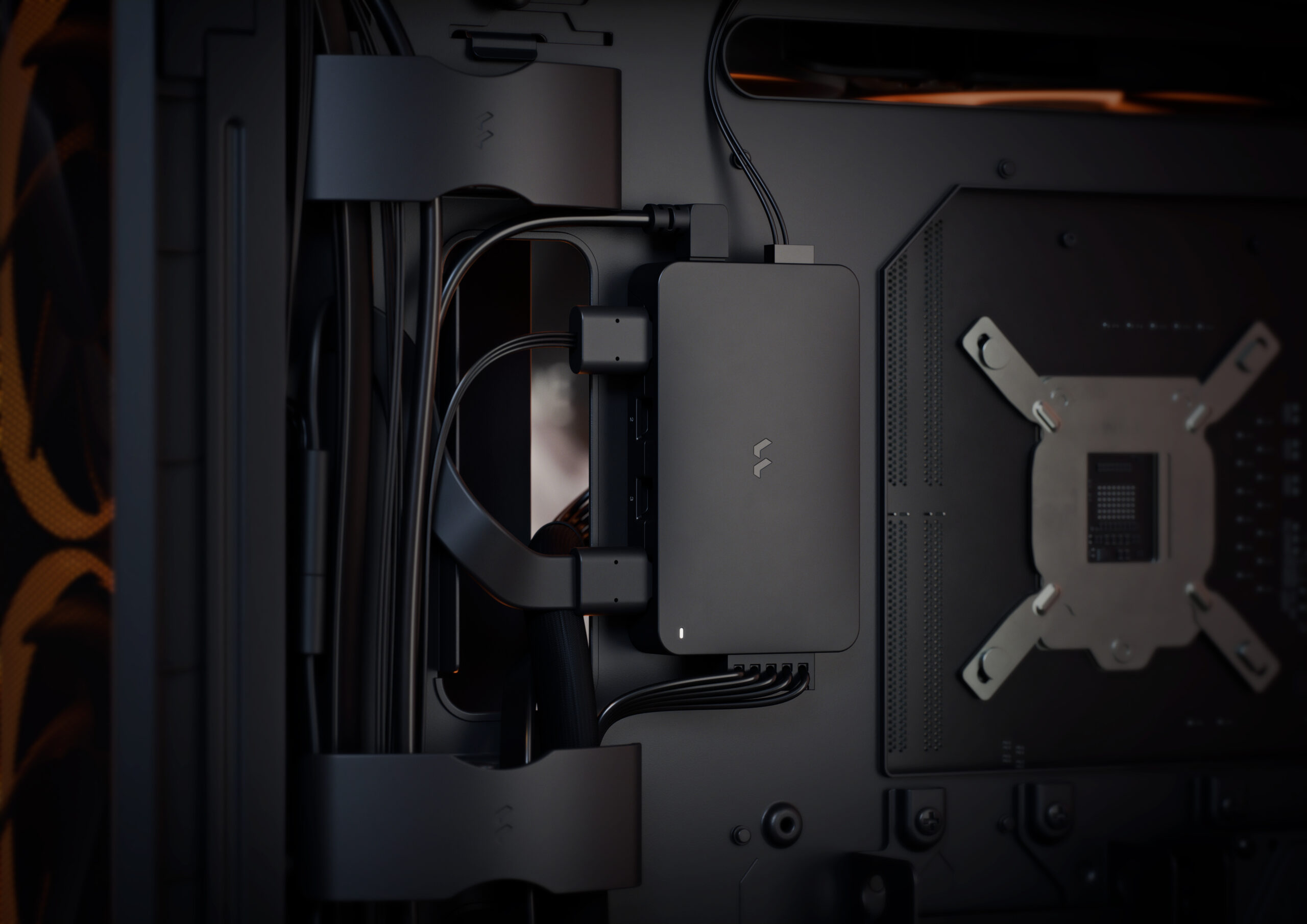

Ambience Pro RGB versions of Meshify 3 and Meshify 3 XL include a pre-routed Adjust Pro Hub, a device that acts as a bridge between components and Adjust Pro — our new online configuration tool.
Configure online
Adjust Pro is a web-based software solution which you can access simply by visiting the Adjust Pro page in a chromium-based desktop browser. It allows you to control the lighting of your ARGB Gen 2 devices and modify fan speeds without downloading or running background software, as all your settings are saved locally on the included Adjust Pro Hub.
Discover the right atmosphere
Control and synchronize the ambient case lighting and Momentum RGB fan light rings in your web browser with Adjust Pro. The lighting of the case and fans are ARGB Gen 2, allowing the online tool to address LEDs individually for holistic animations and effects. To find your ideal atmosphere for gaming, you can simply select one of the curated themes in Adjust Pro or create your own custom look.
Control the flow
Control your fan settings by adjusting speed curves in Adjust Pro. Each port in Adjust Pro Hub can be individually controlled through Adjust Pro, allowing you to customize fan groups. You can set your own curves for the included Momentum RGB fans, maximizing their power for high-performance tasks or stopping them completely with Zero RPM mode.
进阶灯效自定义
支持最多16组ARGB Gen 2 装置，提供多样化动态主题、灯光效果及开机特效，自由打造个性化灯效系统。
流畅连接体验

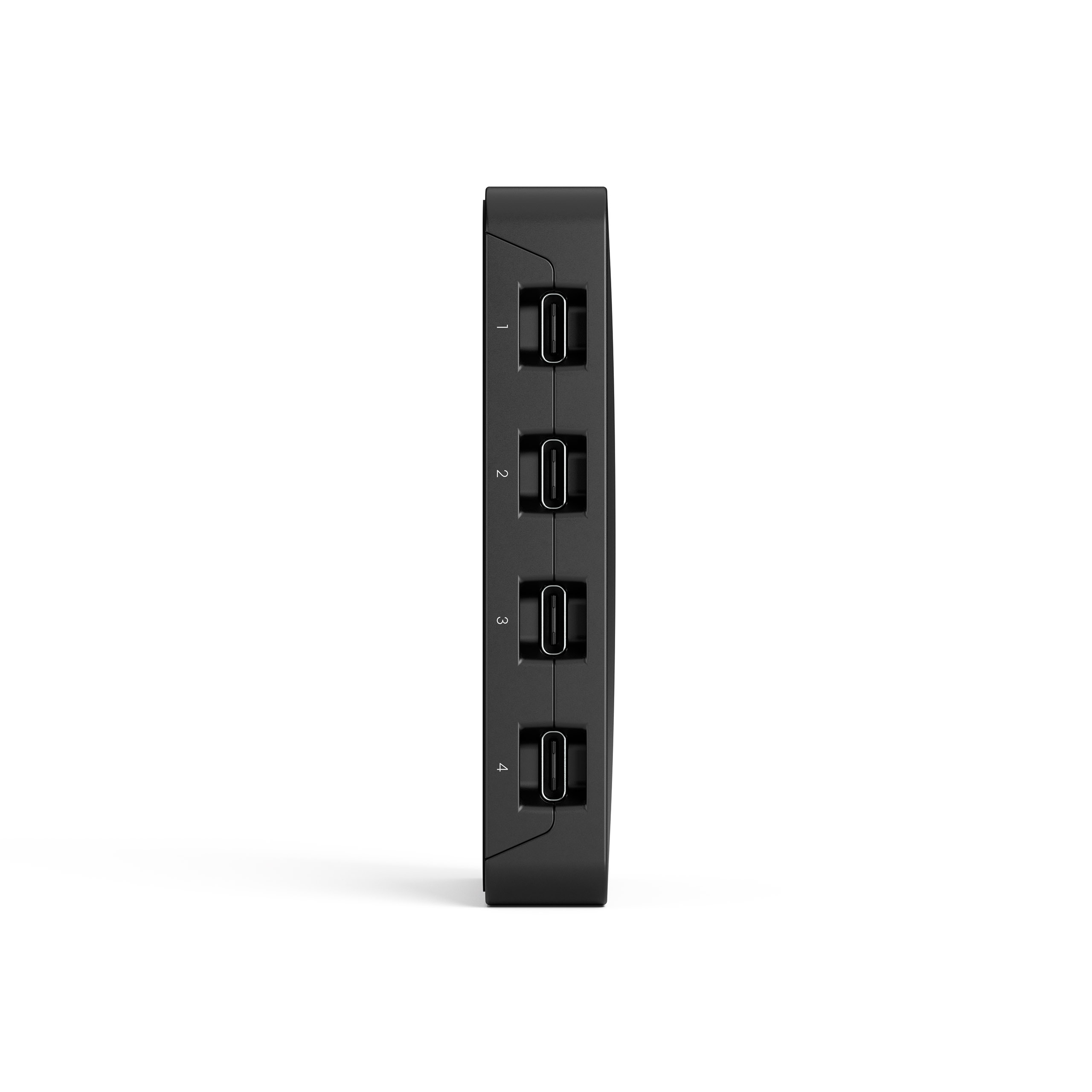

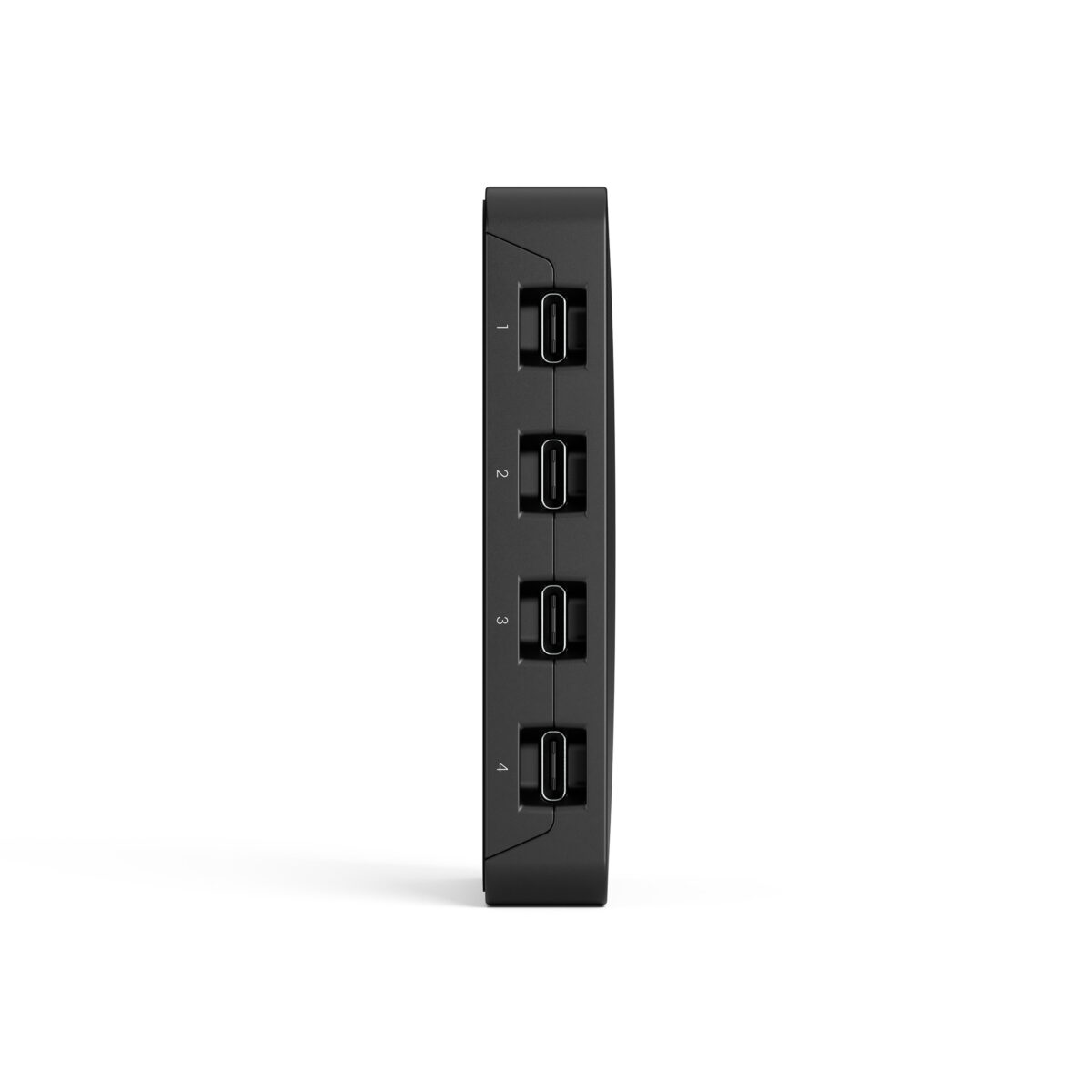

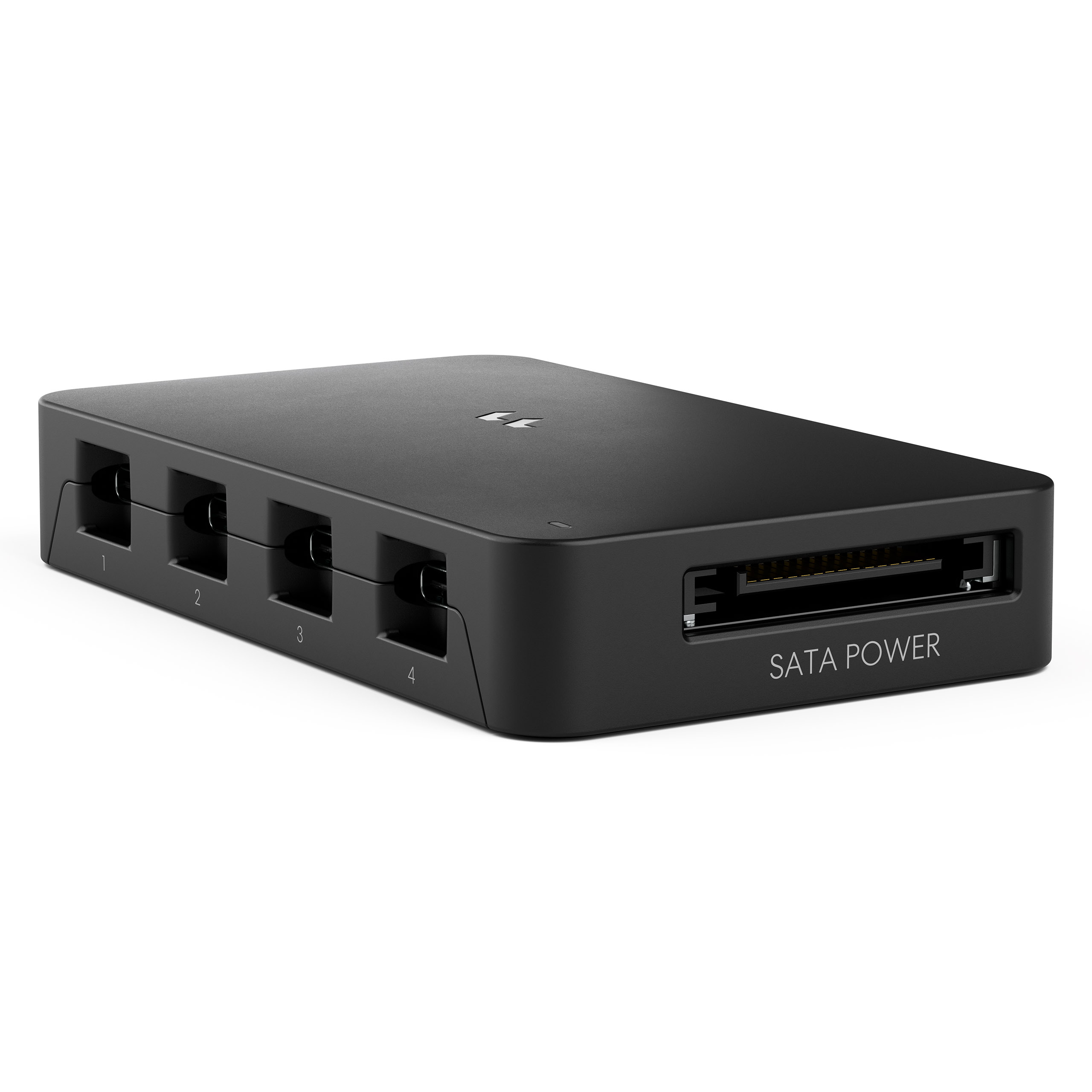

内置四组装置连接埠，并附有兼容旧版设备的转接线，实现快速稳定的即插即用连接体验。
简易安装设计

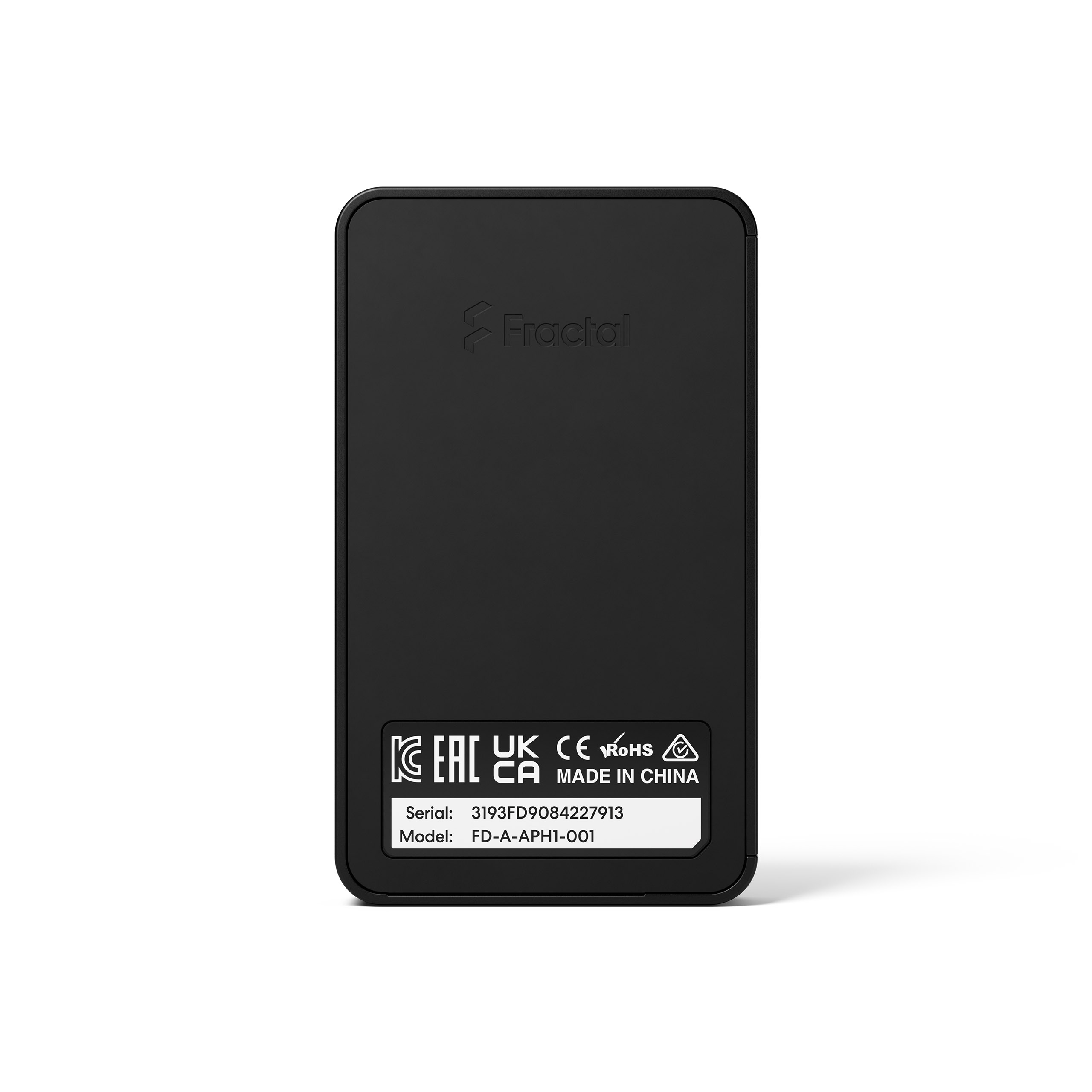

采用磁吸式固定搭配防滑橡胶脚垫设计，支持灵活、稳固地安装于系统内各种位置。
气流控制优化
可直接透过网页浏览器调整风扇转速曲线，优化系统散热效率与噪音表现，确保运行稳定流畅。
本地储存设定
所有设定将直接储存于Adjust Pro Hub设备内，无需安装任何软件程序，确保系统维持最佳性能。
规格
-
输入功率SATA (12 V + 5 V)
-
最大输出电流12 V DC – 2 A 5 V DC – 4,5 A
-

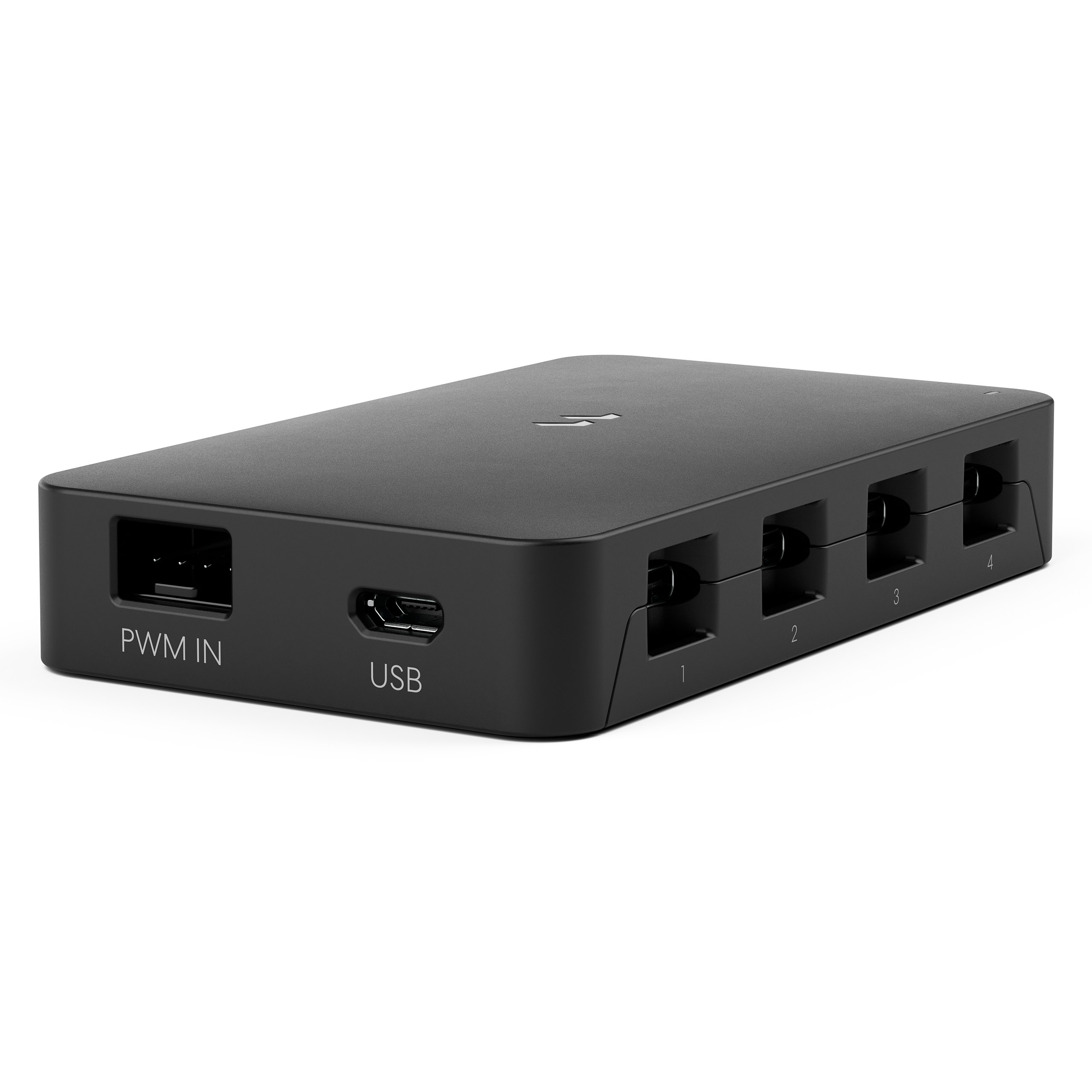

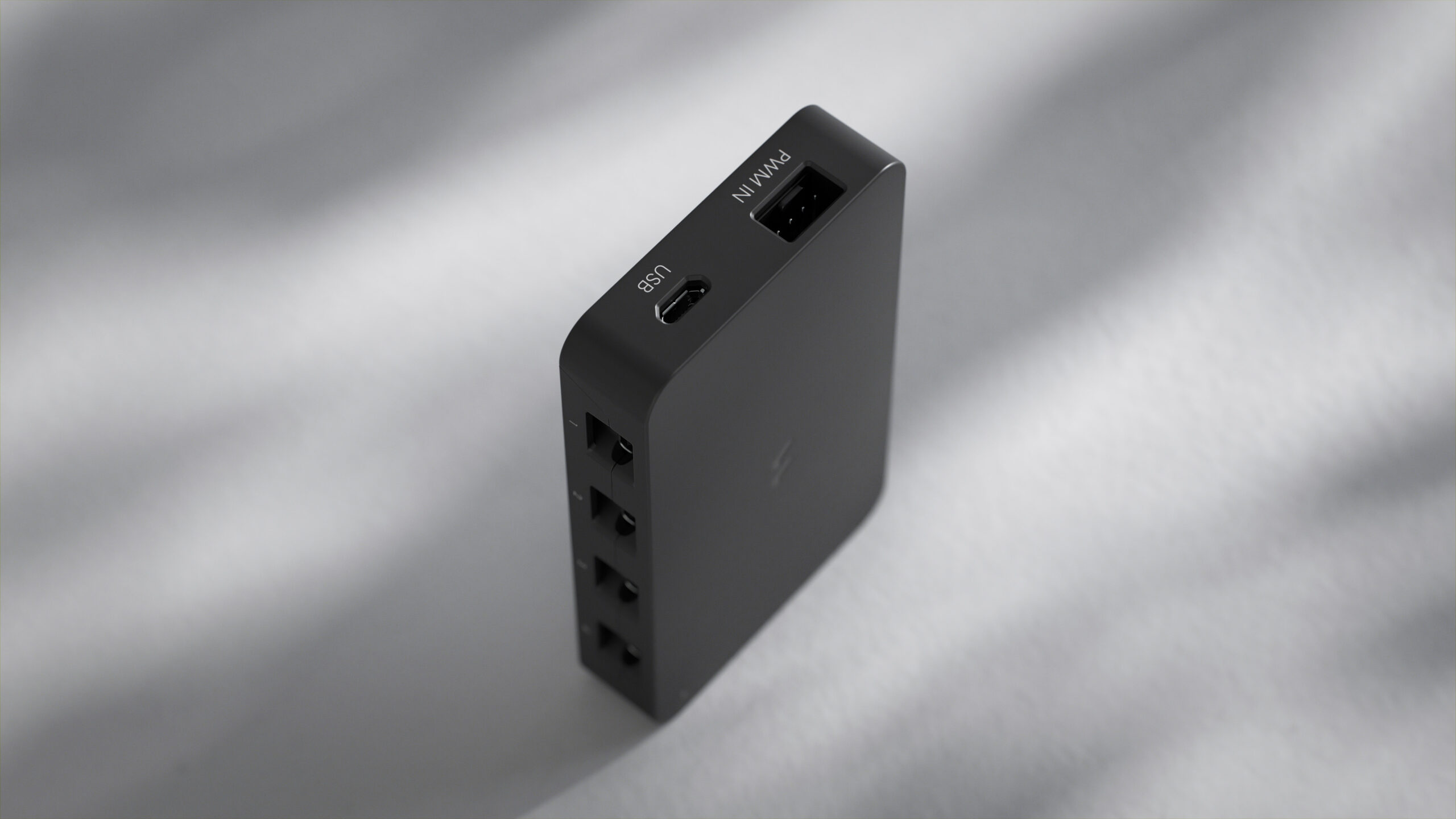

输入连接器4针PWM连接器 Micro-USB
-
输出连接器Fractal Connect（专用连接器）
-
输出支持4
-
输出支持最多16个ARGB Gen 2设备（每通道四个），所有通道总共最多400个LED
-
系统要求具有可用内部USB 2.0接头、基于Chromium的Web浏览器、机箱内电源带有空闲SATA的供电接口
-

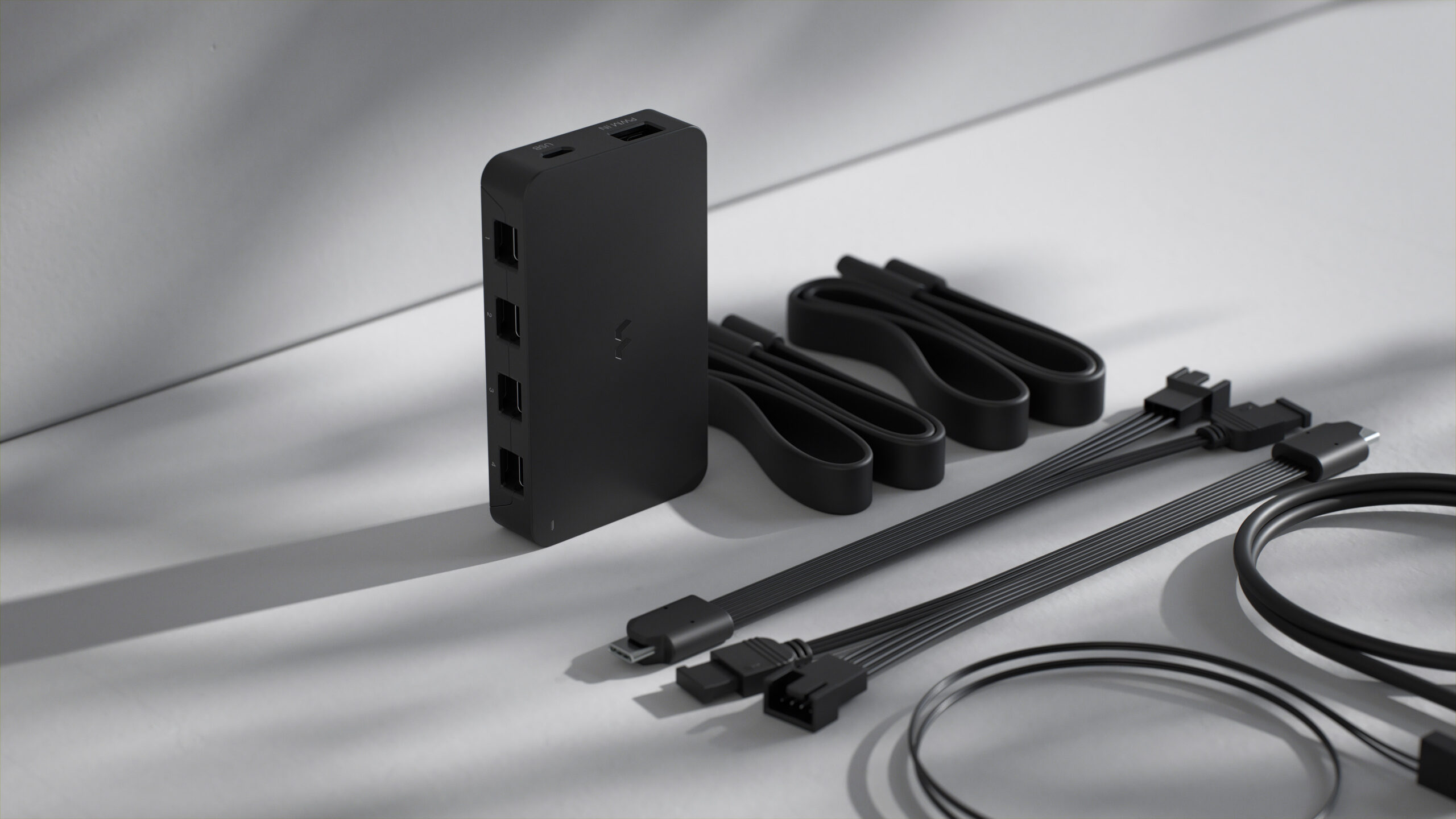

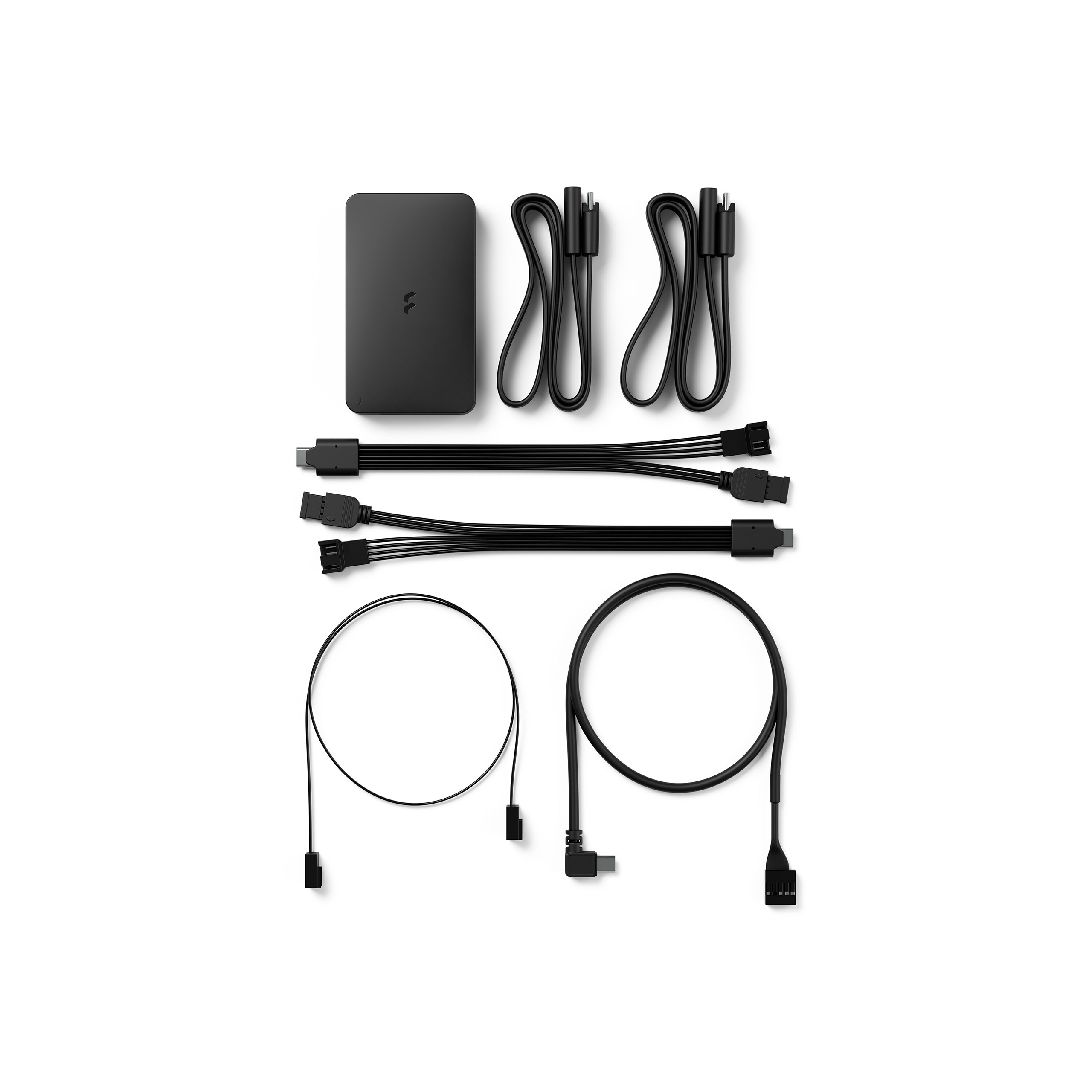

包装内容1x Adjust Pro Hub, 2x 500 mm (公对母Fractal Connect电缆), 1x 500 mm USB到主板电缆 , 1x 500 mm PWM电缆 , 1x 用户手册
